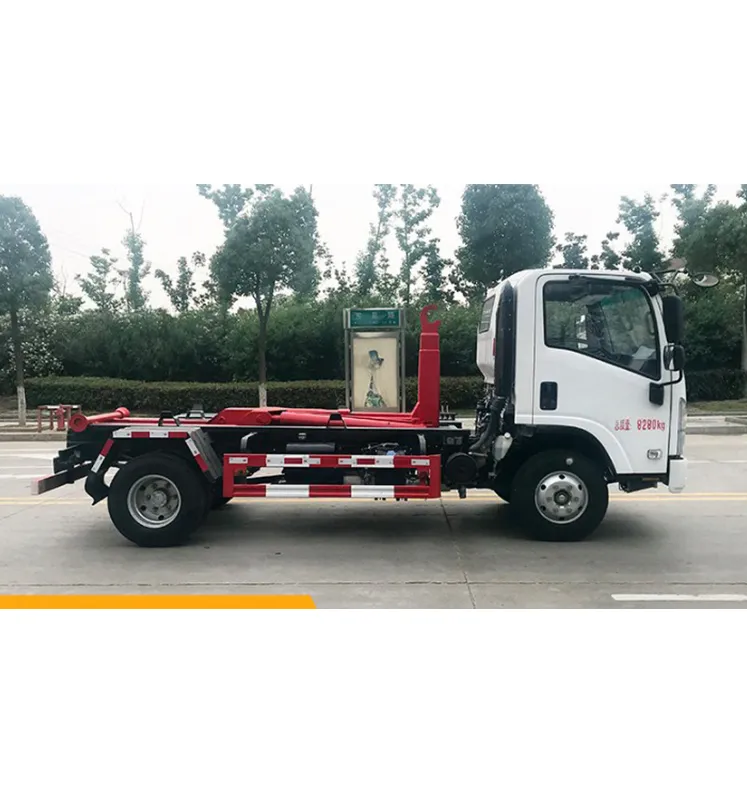

The hooklift garbage truck is a special sanitation vehicle modified on the basis of Foton brand chassis. It consists of chassis,
hooklift, roller support stability system, hydraulic system, control system, etc.
Foton chassis with new flat-head luxury, single bed, semi-floating cab, air bag seat, air brake, direction power, equipped with original cooling heating and air conditioning, electric doors and Windows, central lock.
The chassis has fashionable appearance, solid sheet metal, strong power, strong bearing capacity and reliable quality, which are highly recognized by customers
| Main Parameter | |
| Chassis Name | ISUZU KVR100 |
| Driving Type | 4x2,left hand drive |
| Color & Logo | Accept customization |
| Dimensions | |
| Wheelbase(mm) | 3360 |
| Overall Dimension(mm) | 5800×2300×2350(Approx.) |
| Engine | |
| Engine type | 4 stroke ,Water cooled, direct injection, turbo charger |
| No. of cylinders | 4 cylinders |
| Displacement(L) | 2999L |
| Max. output (hp/kw) | 89HP/120KW |
| Emission standard | Euro 4 or 5 |
| Drive Line | |
| Transmission | 6 speeds ,manual operation |
| Steering | Power steering |
| Brake | Air brake |
| ABS | With |
| Cab | |
| Cabin | 2 people , all welded steel cab;With Air conditioner |
| Axle | |
| Front axle / Rear axle | 2.5 tons / 4.5 tons |
| Tire specification | |
| Tire specification | 7.00R16 steel wire tire;6 |
Technical features of hooklift system:
1 Advanced structure and hydraulic system design.
2 All operations can be operated remotely (30 meters range), easy to operate.
3. Adequate anti-corrosion treatment measures for structural parts: steel components sprayed with high-quality paint; Metal parts (shaft connectors, hard tubing, soft
Pipe fittings, bolt joints, etc.) after anti-corrosion treatment, and galvanized process.
4 Integral casting parts are used in many places where the friction between the drawarm hook and the box is relatively concentrated. The casting parts have good mechanical properties
And excellent friction and lubrication properties
Motion characteristics
1) The car can slide a certain distance horizontally on the guide rail
2) Horizontal sliding can be used to effectively reduce the height of the center of gravity in the process of unloading and loading and unloading boxes
3) Can mount a larger length range of the car box, thereby improving the efficiency of vehicle utilization
Safety device
1) The total pressure of the system and each unit valve block are set with overload protection.
2) Lifting cylinder, sliding cylinder, rear box lock cylinder and rear stabilization device are equipped with load holding valves.
Hydraulic interlocking is provided between functional circuits such as hook arm sliding, box self-unloading, loading and unloading box and rear box locking to avoid misoperation.
3) Hook: high strength design, overall manufacturing. The hook is equipped with mechanical gravity safety device to ensure safety and reliability.
4) Hydraulic rear box lock design with reinforced protective cover plate,
Hydraulic system:
By hydraulic oil pump, main control valve, balance valve, hydraulic lock, tipping cylinder, sliding cylinder, hydraulic tubing, hydraulic oil
Boxes and other components.
Control system
Composed of pneumatic control valves, gas pipes, etc., the air control system installed in the cab is equipped with damping devices to ensure control
Safe operation.
By controlling the pneumatic control valve, the corresponding hydraulic actuator is controlled to achieve the action requirements required for hooklift operation.
Hydraulic drum back support system
The roller rear axle stabilizer is mounted on the rear overhang of the chassis,
Main function: reduce the rear suspension load of vehicle girder and prevent the vehicle from tilting head.
