Waste transport semi-trailer product features:
1. Suitable for medium and long distance domestic waste transfer, the vehicle weight is 12 tons, the rated load mass is 28 tons,
Box material: high strength T700 wear-resistant steel, thickness: side plate 3mm, bottom plate 4mm, box shape: round arc,
Equal width up and down, uniform loading, low center of gravity, strong stability, corrosion resistance, wear resistance, no leakage, equipped with large stainless steel sewage collection box
2. Stable performance: the use of imported high-pressure plunger pump and hydraulic valve set, strong power;
3. Fast unloading speed: push plate flat unloading, the whole unloading is about 3 minutes;
4. High safety: subvert the traditional way of lifting and unloading, adopt the push-plate flat shirking technology to eliminate vehicle rollover caused by lifting, reduce vehicle accidents and casualties;
5. High degree of intelligence: can be one-click operation and remote control of unloading in the cab, can also be fixed unloading, quantitative unloading.
1 | external dimension | 10785*2500*2250mm | |
2 | Material | Box side plate 3MM/4MM wear-resistant steel | |
3 | Axle | 13 tons axle drum brake *3 | |
4 | Leaf spring | 16MM*8 pieces | |
5 | suspension | 180Mechanical suspension | |
6 | outrigger | 28T Single acting leg | |
7 | Traction pin | 50#Traction pin, optional 90# traction pin | |
8 | tyre | 12R22.5 Steel tire *12 pieces | |
9 | Steel ring | 9.0-22.5 Steel rings (14MM thick) *12 | |
10 | Content volume | 45CBM | |
11 | Compression ratio | 1:0.65 | |
12 | Discharge cycle time | ≤300s | |
13 | Rear door opening and closing cycle time | ≤22s | |
14 | Hydraulic system pressure | 18Mpa | |
The other standard configurations : stainless steel sewage collection box, silicone strip at the back door, sealed without leakage, manual + remote control operation; With ABS; | |||
Number of axes | 3 | ||
Number of tires | 12pcs ; 12R22.5 12PR | ||
Wheelbase | 4980+1310+1310mm,4780+1310+1310 mm | ||
Number of leaf springs: | -/8/8/8,-/10/10/10 | ||
Detail presentation
The taildoor adopts the enhanced safety lock hook for better sealing performance
Remote control distance up to 100 meters to ensure safe operation
CAN electronic control
One key control unloading, with dust-proof, shock-proof, anti-break, waterproof functions.

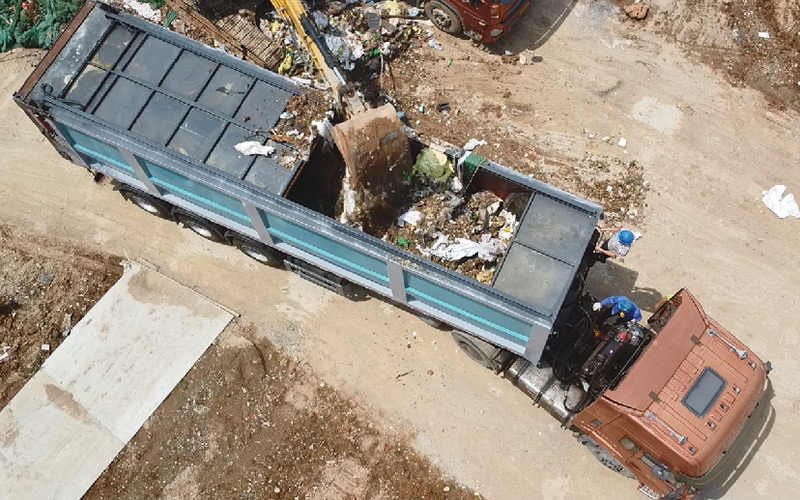

Usage scenario
Large landfill
Refuse incineration power plant
sandy soil test
